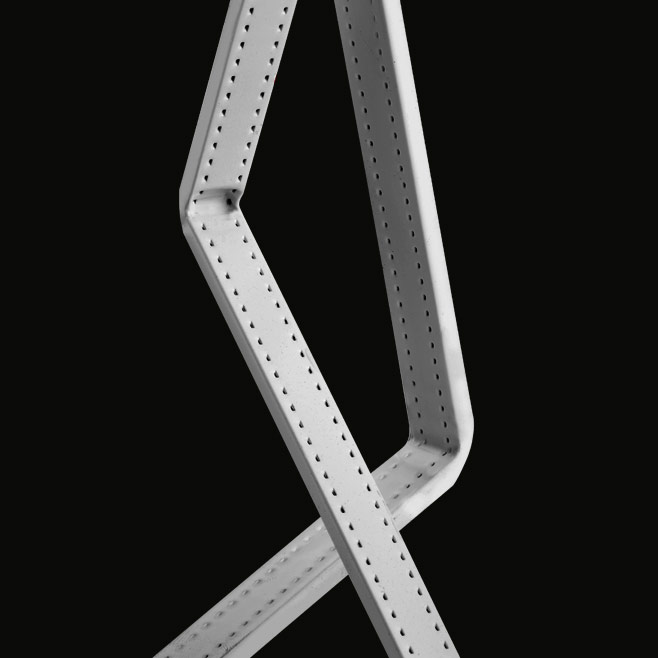

Aluminum Spacer Bar – Bendable
- Suitable for use on the automatic bending machine.
- High Frequency welded
- Min. Tolerance in size
- High quality aluminum, 3003 Alloy
- Perfect bendnig on 90 degree
- Other lenght available on the special request
Specification
SERIAL | A | B | C | D | LENGTH | TOTAL METER |
|---|---|---|---|---|---|---|
Bend-006 | 5.5 | 6.5 | 5 | 0.32 | 5 MTR | 2750 MTR |
Bend-008 | 7.5 | 6.5 | 5 | 0.32 | 5 MTR | 1890 MTR |
Bend-009 | 8.5 | 6.5 | 5 | 0.32 | 5 MTR | 1760 MTR |
Bend-010 | 9.5 | 6.5 | 5 | 0.32 | 5 MTR | 1540 MTR |
Bend-011 | 10.5 | 6.5 | 5 | 0.32 | 5 MTR | 1475 MTR |
Bend-012 | 11.5 | 6.5 | 5 | 0.32 | 5 MTR | 1320 MTR |
Bend-014 | 13.5 | 6.5 | 5 | 0.32 | 5 MTR | 1050 MTR |
Bend-016 | 15.5 | 6.5 | 5 | 0.32 | 5 MTR | 945 MTR |
Bend-018 | 17.5 | 6.5 | 5 | 0.32 | 5 MTR | 880 MTR |
Bend-020 | 19.5 | 6.5 | 5 | 0.32 | 5 MTR | 735 MTR |
Bend-022 | 21.5 | 6.5 | 5 | 0.32 | 5 MTR | 735 MTR |
Bend-024 | 23.5 | 6.5 | 5 | 0.32 | 5 MTR | 630 MTR |
OTHER PRODUCTS

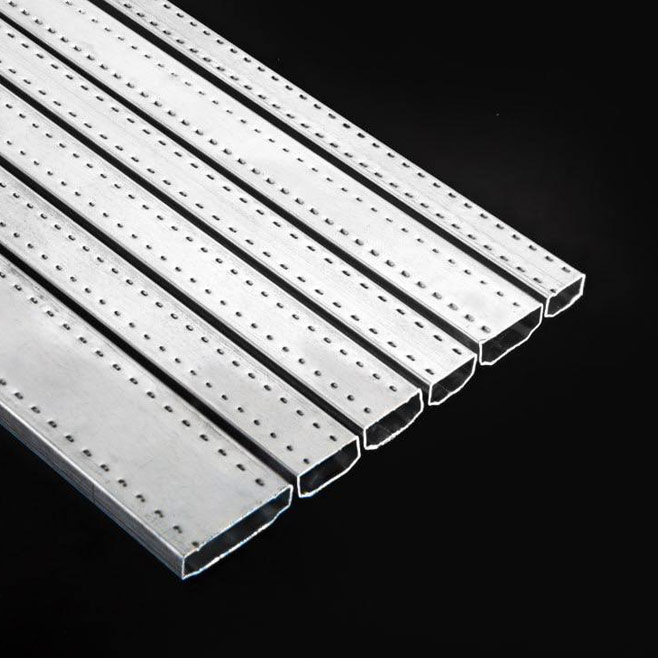

Standard Spacer

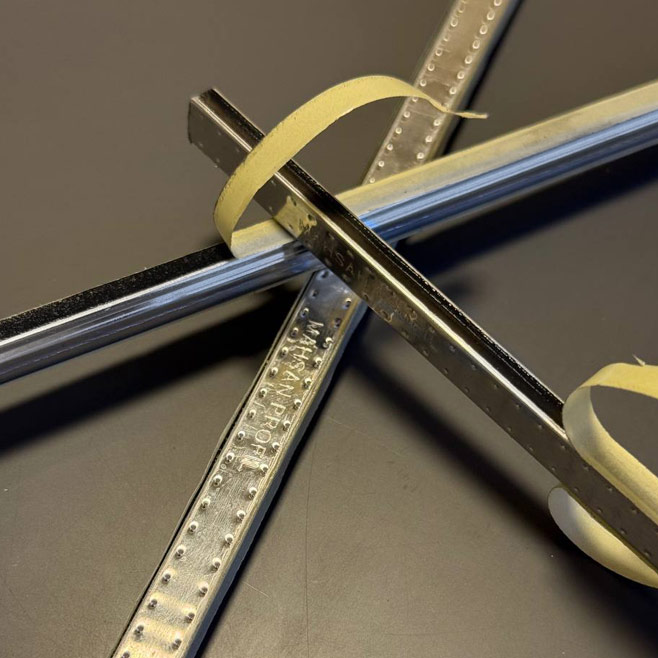

Butyl Spacer
